CUAV C-RTK 9P Positioning Module

CUAV C-RTK 9P Positioning Module | High Precision GPS Drone Hardware PX4 APM (Discontinued)

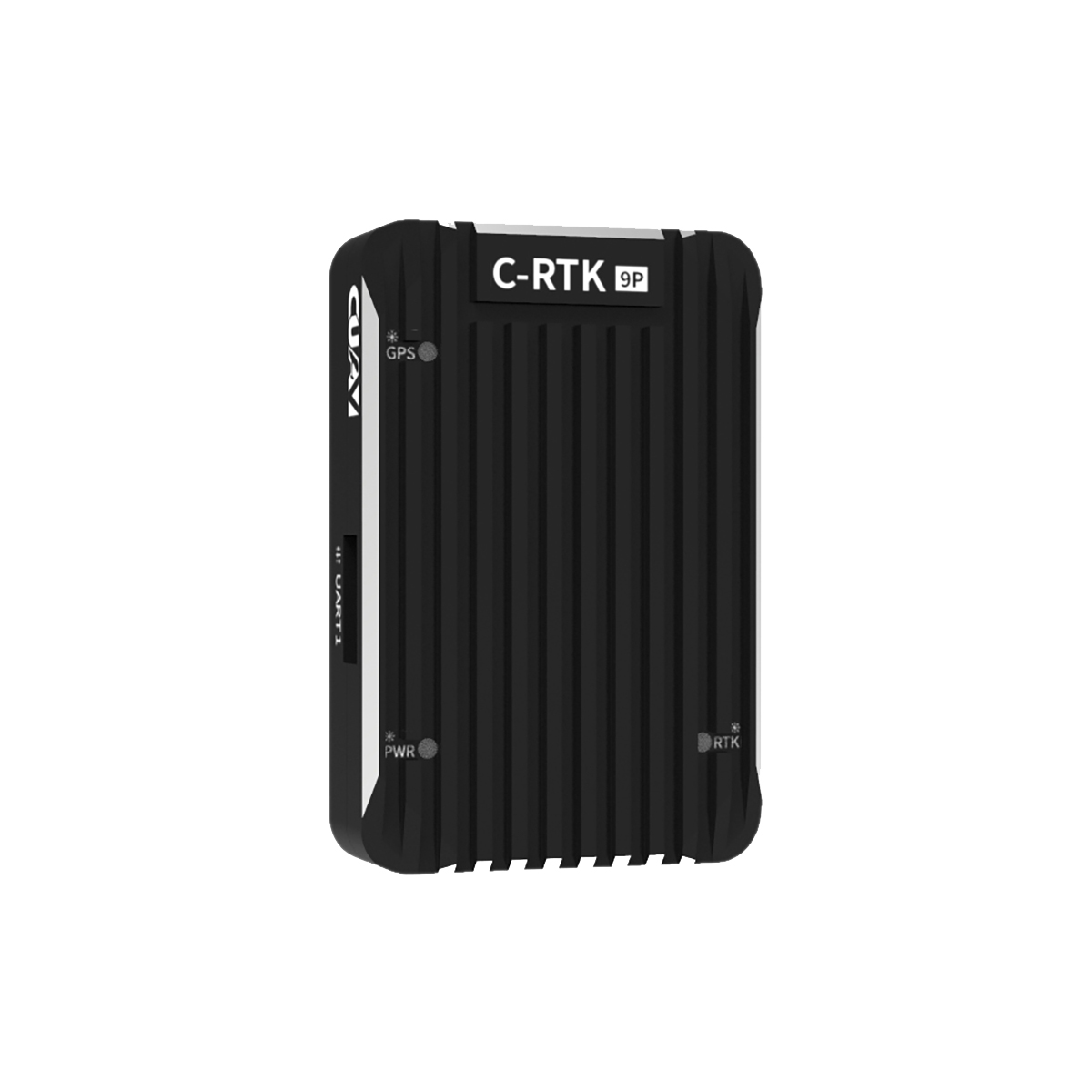

CUAV C-RTK 9P Positioning Module High Precision GPS Drone Hardware PX4 APM is an RTK GPS module designed by CUAV for the professional market. It uses Ublox’s F9P module, supports multi-satellite multi-frequency, and uses advanced RTK algorithms. It can build an RTK system with two identical C-RTK 9P modules. Using it, the PX4 can achieve centimeter-accurate position in seconds, which is much more accurate than the average GPS, and faster and more convenient than the previous generation M8P module.

Follow us World Drone Market on our YouTube to view more about the CUAV C-RTK 9P.

For the RTK function, you will need to buy the CUAV C-RTK 9P Set.

Specifications

Receiver type

• • RTK Receiver: Ublox F9P

GNSS

• • GPS / QZSS, Beidou, Galileo, GLONASS

GNSS Bands

• • GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C

Nav. update rate

• • RTK Up to 20HZ

Position accuracy

• • RTK 0.01 m + 1 ppm CEP

Convergence time

• • RTK < 10 sec

Acquisition

• • Cold starts 24 s
  • Aided starts 2 s
  • Reacquisition 2 s

Sensitivity

• • Tracking & Nav –167 dBm
  • Cold starts –148 dBm
  • Hot starts –157 dBm
  • Reacquisition –160 dBm

Anti-jamming

• • Active CW detection and removal Onboard band pass filter

Anti-spoofing

• • Advanced anti-spoofing algorithms

Interfaces

• • 2 UART
  • 1 USB
  • 1 I2C
  • 1 Antenna interface(MMCX)

Protocols

• • NMEA
  • UBX binary
  • RTCM version 3.x

Supply voltage

• • –40 °C to +85 °C

Size

• • 31.5*48*12MM

For product installation and configuration, please visit CUAV C-RTK 9P User Manual.
