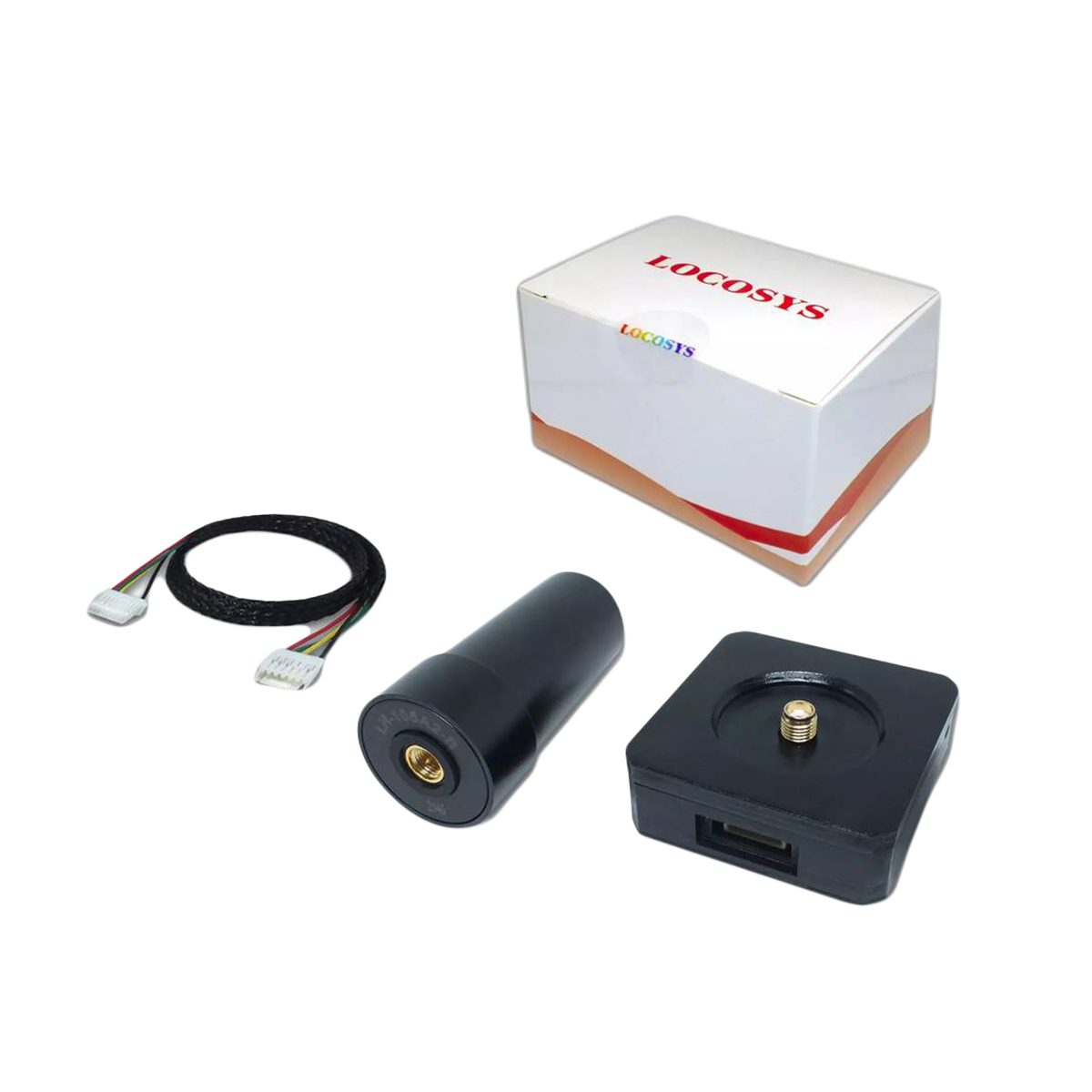

Locosys Hawk R2(RTK + E-COMPASS) dual-frequency RTK centimeter-level receiver
The Locosys Hawk R2 Dual-Frequency RTK Centimeter-Level Receiver is compatible with the PX4 platform. This is a L1+L5 dual-frequency RTK centimeter-level receiver designed for drones based on the Pixhawk (PX4) platform. The receiver is capable of simultaneously tracking all global civil navigation systems, including GPS, GLONASS, GALILEO, BEIDOU, and QZSS. It acquires L1 and L5 signals at once while providing centimeter-level RTK positioning accuracy.
Locosys Hawk R2 RTK Besides the built-in lightweight helical antenna not only enhances RTK positioning stability, but also increases the flight time of the drone The fast Time-To-First-Fix, RTK convergence, superior sensitivity and low power consumption, the integrated 3-axis e-compass make sure the quality of its performance in the poor environment for GNSS positioning, make it become the best RTK receiver solution for Pixhawk(PX4) platform-based UAV
Locosys Hawk R2
- Centimeter-level RTK high position accuracy+ integrated 3-axis e-compass
- Concurrent reception of L1 and L5 band signals
- Support GPS, GLONASS, BEIDOU, GALILEO, QZSS
- Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Support 135-channel GNSS
- Fast TTFF at low signal level
- Free hybrid ephemeris prediction to achieve faster cold start
- Default 5Hz, up to 10 Hz update rate*
- Build-in super capacitor to reserve system data for rapid satellite acquisition
- Build-in 3 axis compass function

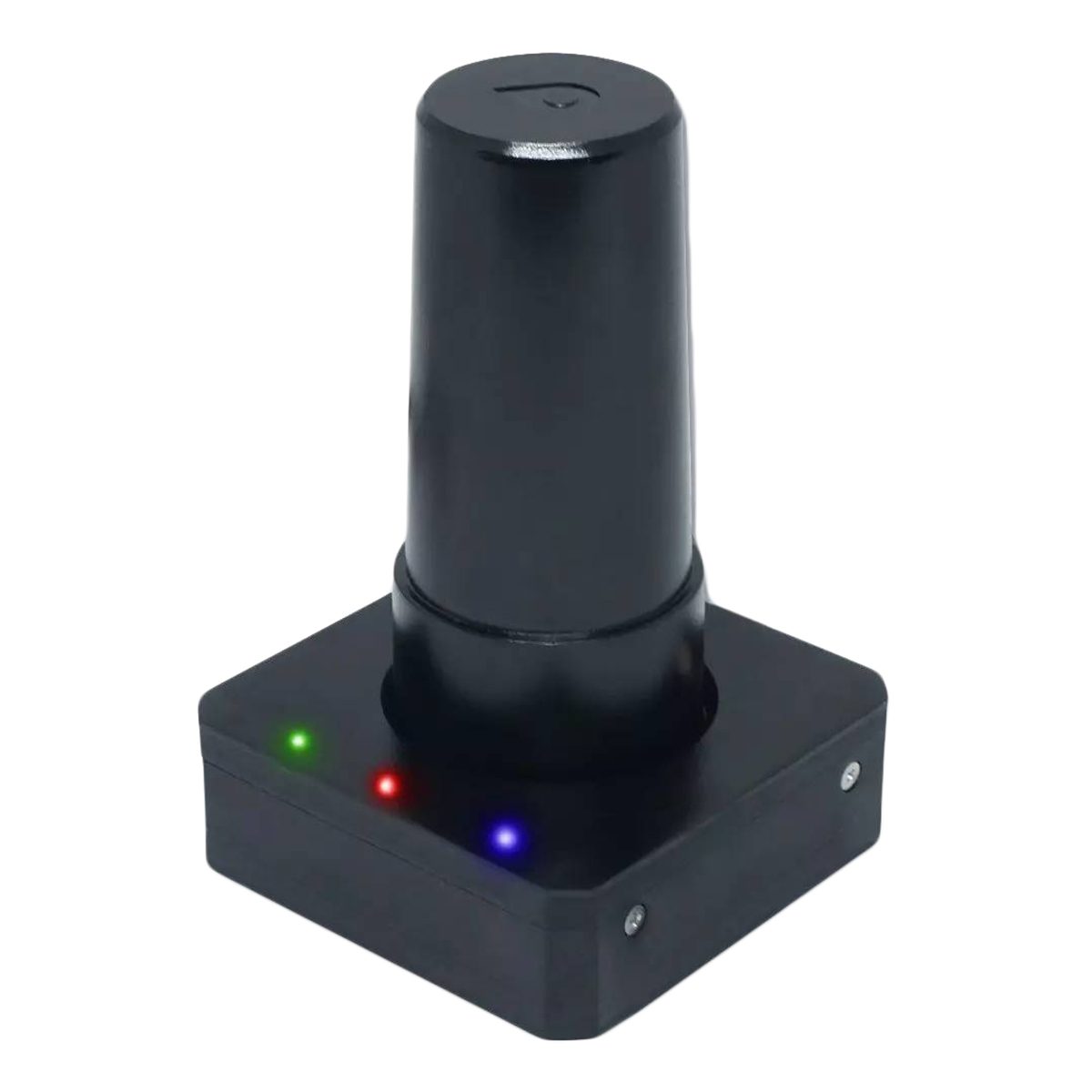

- Three LED indicator for Power, PPS and Data transmit
- *Note: SBAS support 5Hz only.
Locosys Hawk comparison
Product name | Description | RTK position accuracy | Integrated e-compass |
Hawk A1 | Sub-meter GNSS receiver for UAV | ||
Hawk R1 | RTK receiver for UAV | ● | |
Hawk R2 | RTK receiver for UAV + e-compass | ● | ● |
Locosys Hawk R2 APPLICATIONS
- Unmanned aerial vehicle (UAV) positioning and navigation
Pixhawk website link for Hawk R series :
https://docs.px4.io/main/en/gps_compass/rtk_gps_locosys_r2.html
