Benewake TFmini-S LIDAR Module
Benewake TFmini-S LIDAR Module has the advantages of low cost, small volume and low power consumption, and multiple interfaces to meet different requirements. TFmini is a milestone for Benewake to promote the process of low cost LiDAR. It has unique optical, structural and electronic designs. As an upgraded version, TFmini-S is based on the extensive experience of TFmini. While still small and light, it has higher performance and is suitable for much more applications.
- Benewake TFMINI-S Micro LIDAR Module UART (12m)
- Features a single-point ranging LiDAR
- Can achieve high frequency range detection
- Has lower power consumption
- Is compatible with UART interface
- Is more adaptable to different outdoor environments
Follow us World Drone Market on YouTube to view more videos about TFmini S LIDAR Module.
TFmini-S 12m cost-effective distance sensor
Benewake TFmini S Rangefinder adhere to the application-oriented attitude:
Simple appearance, powerful functions.
It can meet your needs in daily smart goods.
Tiny Body Yet Big Wisdom
TFmini-S is still lightweight: ①the blind zone is reduced to 10cm; ②fearless ambient light; ③frame rate up to 1000H z; ④UART, IIC, IO communication interface switching.

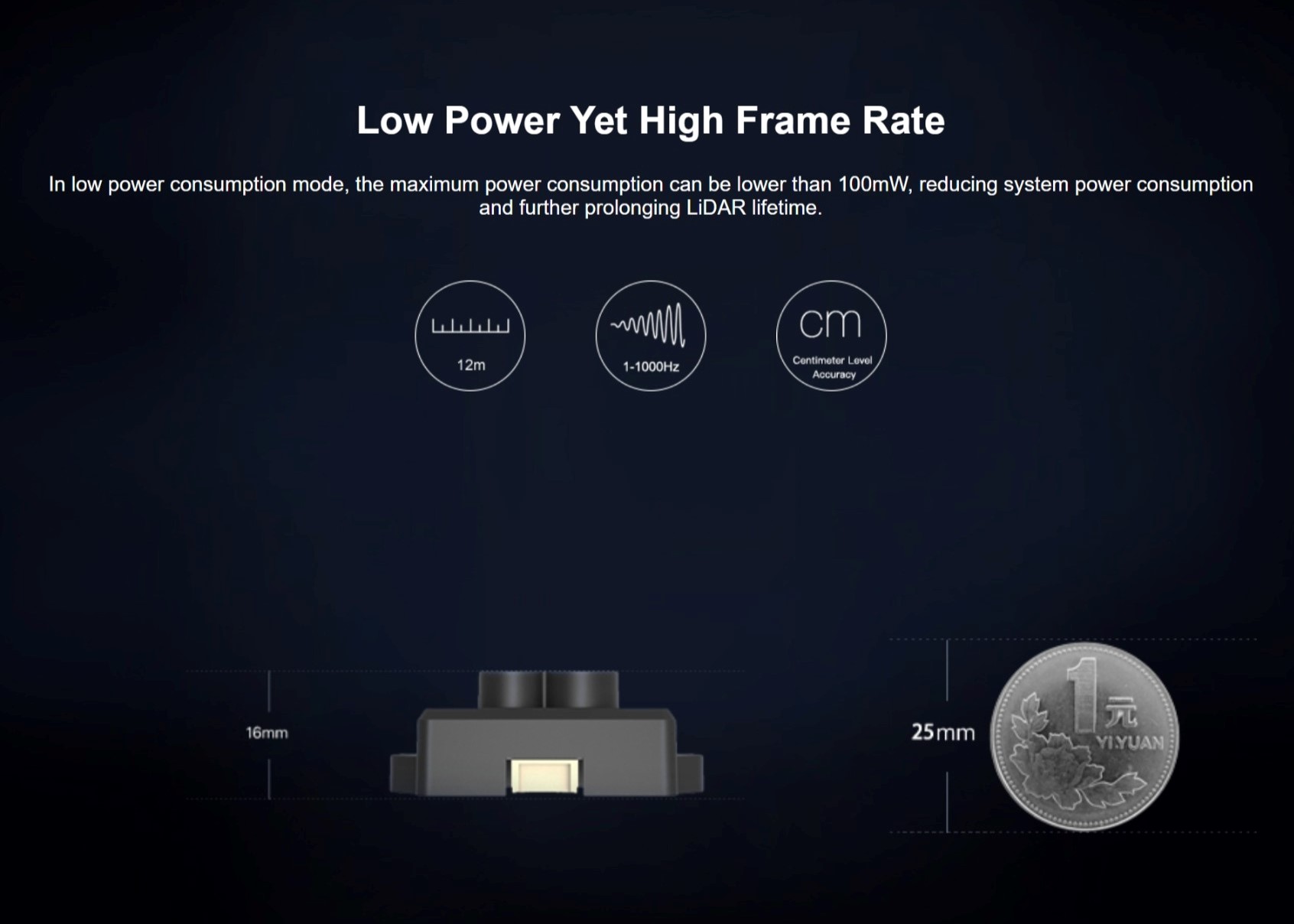

Low Power Yet High Frame Rate
In low power consumption mode, the maximum power consumption can be lower than 100mW, reducing system power consumption and further prolonging LiDAR lifetime.
Visit World Drone Market to find different versions of Drone Lidar.
Specifications
Main Application Scenario
- Pedestrian detection
- Vehicle detection
- Intelligent barrier gate
- Altimeter
Product Performance
- Operating Range: 0.1 ~12 m @ 90% Reflectivity
- Accuracy: ±6 cm @ (0.1-6 m) [Accuracy was calculated based on a standard whiteboard with reflectivity 90% in indoor condition] / ±1% @ (6-12 m)
- Distance resolution: 1 cm
- Frame rate: 100 Hz
- Ambient light immunity: 70 Klux
- Operating Temperature: 0 ~ 60 °C
Optical parameters
- Light source: VCSEL
- Central wavelength: 850 nm
- Photobiological safety: Class1 (EN60825)
- FOV: 2°2
Electrical parameters
- Supply voltage: 5 V ±0.1 V
- Average current: ≤140 mA
- Power consumption: ≤0.7 W
- Peak current: 200 mA
- Communication level: LVTTL (3.3 V)
- Communication interface: UART
Miscellaneous
- Housing: PC/ABS
- Storage temperature: -20 ~ 75 °C
- Weight: 5 g ±0.3 g
- Cable length: 10 cm
For product installation and configuration, please visit Benewake TFMINI-S LIDAR – Manual
TFMINI-S LIDAR Module – Datasheet
