Benewake TF02 Pro LIDAR Module

Benewake TF02 Pro Drone LIDAR Module

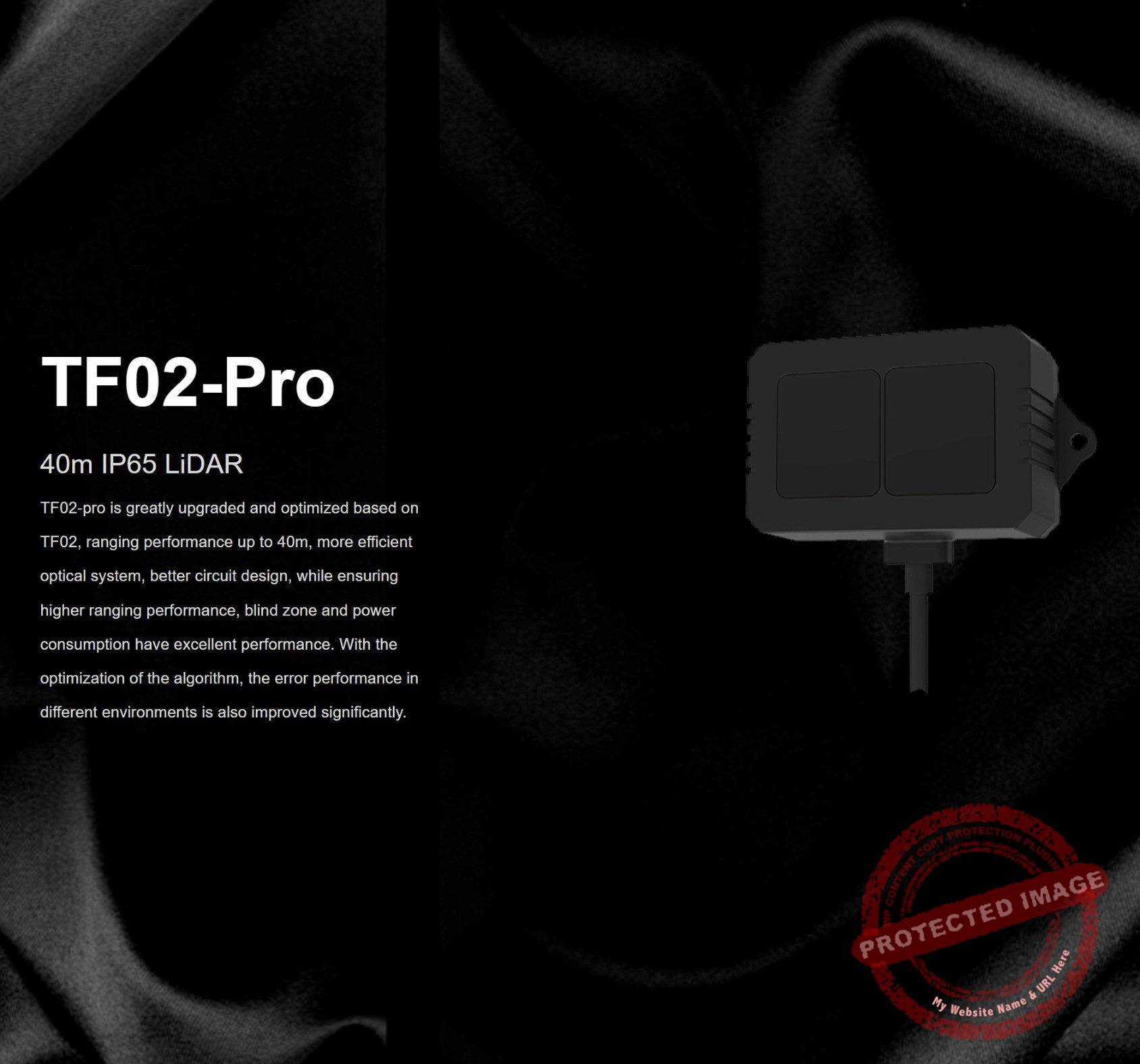

Benewake TF02 Pro LIDAR Module as a cost-effective mid-range distance sensor, ranging performance up to 40m, based on TOF, can be widely used in UAV height control, intelligent transportation, intelligent parking, intelligent agriculture. TF02-pro, as the upgraded version, has been upgraded and optimized by the optical system and algorithm to achieve better realization in outdoor ambient, different reflectivity backgrounds and temperature.

• Benewake TF02-Pro LIDAR  Rangefinder IP65
• Features a single-point ranging LiDAR
• Can achieve stable, accuracy, sensitive and high-frequency range detection
• Offers a sensor range up to 40 meters
• Has an ambient light resistance up to 100 Klux

Follow us World Drone Market on YouTube to view more videos about Benewake TF02 Pro LIDAR Module.

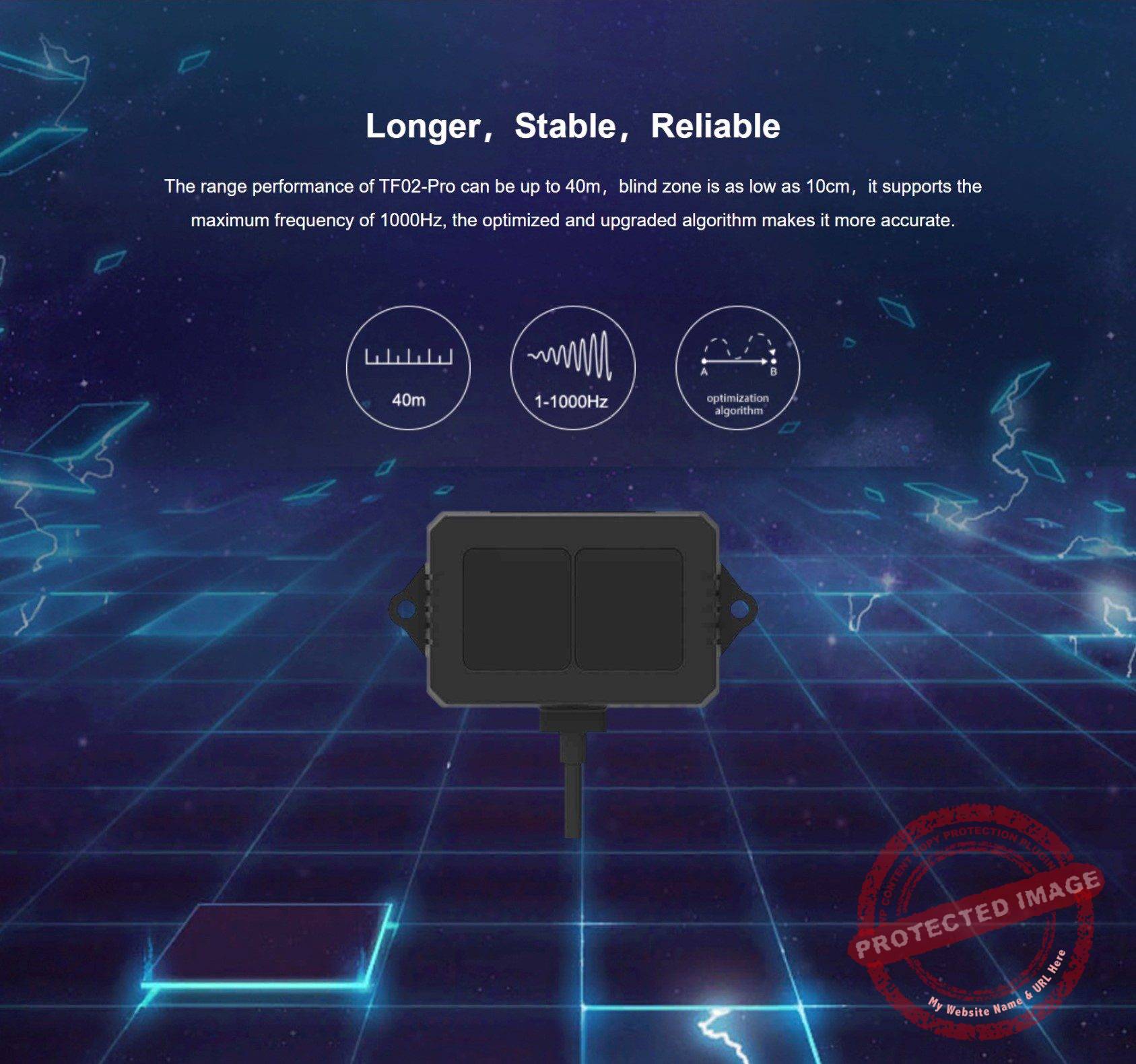

Longer, Stable, Reliable

The range performance of Benewake TF02-Pro Rangefinder can be up to 40m，blind zone is as low as 10cm，it supports the maximum frequency of 1000Hz, the optimized and upgraded algorithm makes it more accurate.

High Strength Housing

The innovative production process and hardware optimizations make its enclosure level reach IP65. The integrated structure makes its body more powerful and unbreakable.

Specifications

Operating Range:

• 0.05 ~40 m @90% reflectivity
• 0.05 ~13.5 m @10% reflectivity
• 0.05 ~40 m @90% reflectivity (100 Klux)
• 0.05 ~13.5 m @10% reflectivity (100 Klux)
• Accuracy: ±5 cm (0.05 ~5 m), ±1% (5~40 m)
• Distance Resolution: 1 cm
• Frame rate: 100 Hz
• Repeatability: 1σ: <2 cm (0.05 ~35 m @90% reflectivity)
• Ambient light resistance: 100 Klux
• Operation t temperature: -20 ~ 60 °C
• Protection Level: IP65

Optical Parameters

• Light source: VCSEL
• Central wavelength: 850 nm
• FOV: 3°
• Photobiological safety: Class 1 (EN60825)

Electrical Parameters

• Supply voltage: DC 5 V ~ 12 V
• Average Current: ≤200 mA
• Power consumption: ≤1 W
• Peak Current: 300 mA
• Communication level: LVTTL (3.3 V)
• Communication interface: UART/I2C

Other Parameters

• Weight: 50 g (with cables)
• Enclosure material: PC/ABS
• Storage temperature: -30 ~80 °C
• Cable length: 80 cm

For product installation and configuration, please visit Benewake TF02-Pro Rangefinder – Manual

Benewake TF02-Pro Rangefinder – Datasheet

Benewake TF02-Pro Rangefinder – Manual in PDF
