Benewake TF03-100 LIDAR Module

Product codeN/A
Availability In Stock

$229.80$259.90

Buy it now

Benewake TF03-100 UART/CAN LIDAR Module

Benewake TF03-100 LIDAR Module (Communication Interface CAN) is a industrial high-speed LiDAR. TF03 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their needs. The product is applicable to the terrain following of drones, the collision avoidance of cars, intelligent transportation and industrial safety warning. TF03 contains two versions with 100m and 180m.

TF03 adopts the pulsed time-of-flight principle. The unique design of the optical system and the signal processing circuit improved the detecting performance in a compact size. In addition to increasing the range to more than 100 meters, the key parameters also have excellent performance in the whole range, such as distance resolution, accuracy, repeatability and detection frequency.

  • Long range Rangefinder, as far as 100m
  • Multi-interface compatibility, able to be used in many fields
  • IP67 high-strength bodywork and high reliability
  • Small in volume and easy to be integrated
  • High-speed measuring up to 10KHz, high repeated accuracy
  • Excellent highlight interference, able to be used outdoors

Follow us World Drone Market on YouTube to view more videos about Benewake TF03-100 LIDAR Module.

High Enclosure Rate, Multiple Interfaces

The shell of Benewake radar TF03 is made of aluminum alloy and infrared band-pass glass to improve the overall strength. The enclosure rate is IP67, which can be applied in various extreme environments.
The TF03 supports multiple interfaces, including UART, CAN,  which can satisfy different applications.

Customized Parameters

Multiple parameters of Benewake TF03 Rangefinder can be configured by customers, including the measuring frequency, baud rate, trigger mode, over-range assignment, etc. TF03 is also equipped BootLoader function, enabling users to upgrade product firmware locally.

Application

  1. Robot Obstacle avoidance
  2. UAV Anti-collision
  3. UAV Auto landing
  4. UAV Height fixing / Distance keeping
  5. UAV Terrain following
  6. Level Measurement
  7. Intelligent parking
  8. Crane safety operations
  9. Vehicle position sensing
  10. Vehicle detection for barrier gate control

Benewake TF03-100 UART LIDAR Module Performance Parameters

Benewake Lidar Operating Range 100m
Non-detection zone 10cm
Distance resolution 1cm
Accuracy ±10cm(less than 10m),1%(more than 10m)
Refresh rate 1Hz–1000Hz(default 100Hz)
Ambient light immunity 100Klux

Optical parameters

Wavelength of Light Source 905nm
FOV 0.5°

Ambient data

Operation Temperature -25~60℃
Enclosure rating IP67

Communication and Interface

Form of Output Data Hexadecimal distance value; Character string;
Communication Interface UART;CAN

Mechanical/Electrical parameters

Supply Voltage DC 5V(≥200mA)
Power Consumption ≤0.9W
Dimension 44mm*43mm*32mm(length*width*height)
Weight 77g

For product installation and configuration, please visit Benewake TF03-100 LIDAR Manual

Benewake TF03-100 LIDAR Manual in PDF

Benewake TF03 Rangefinder (100 m) – Datasheet

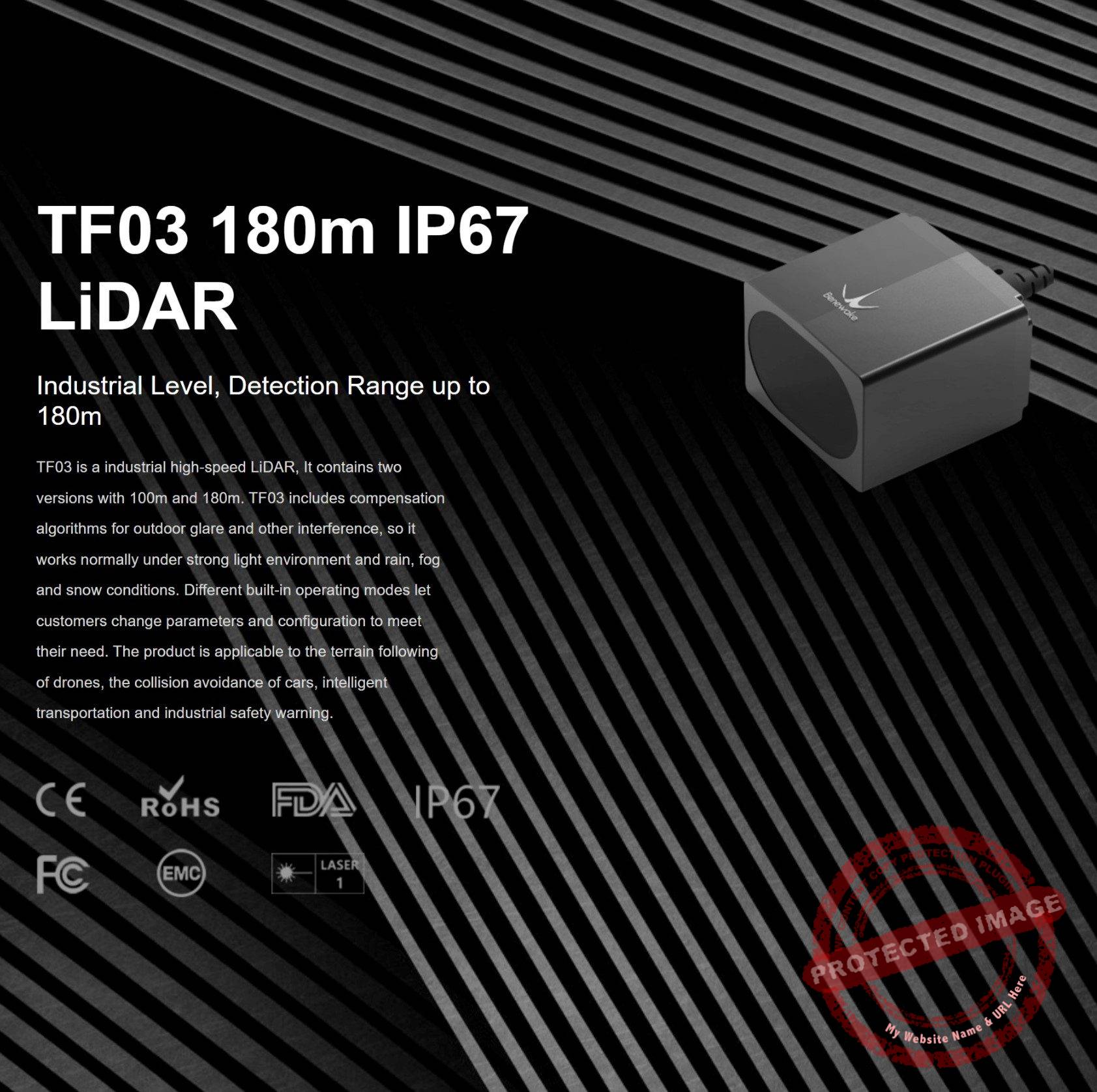

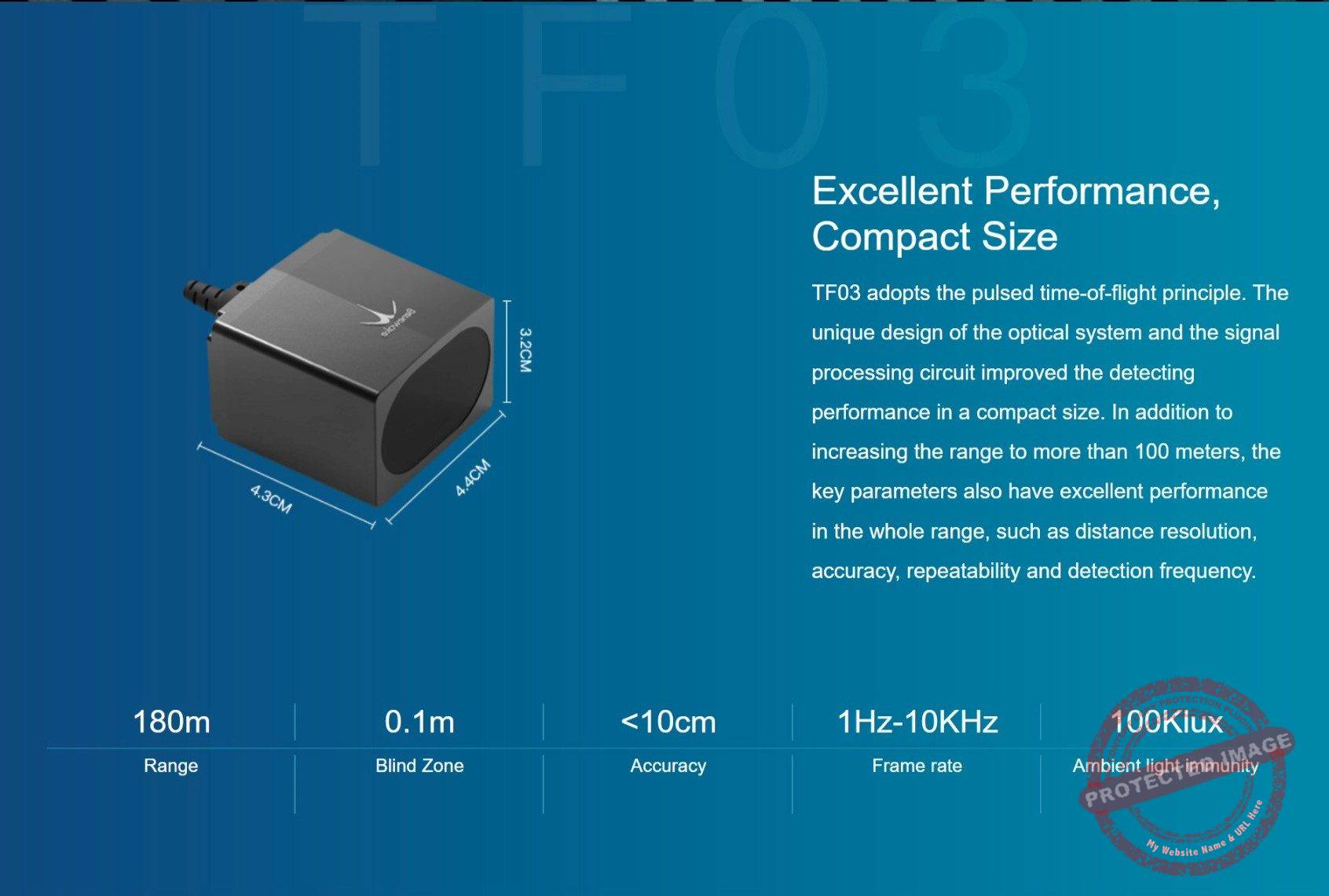

Benewake TF03 LIDAR Module 2 - Benewake TF03-100 LIDAR ModuleBenewake TF03 LIDAR Module 3 - Benewake TF03-100 LIDAR Module

Weight 0.5 kg
Dimensions 12.5 × 9.5 × 5 cm
TF03-100 LIDAR Version

UART, CAN, RS232, RS485
