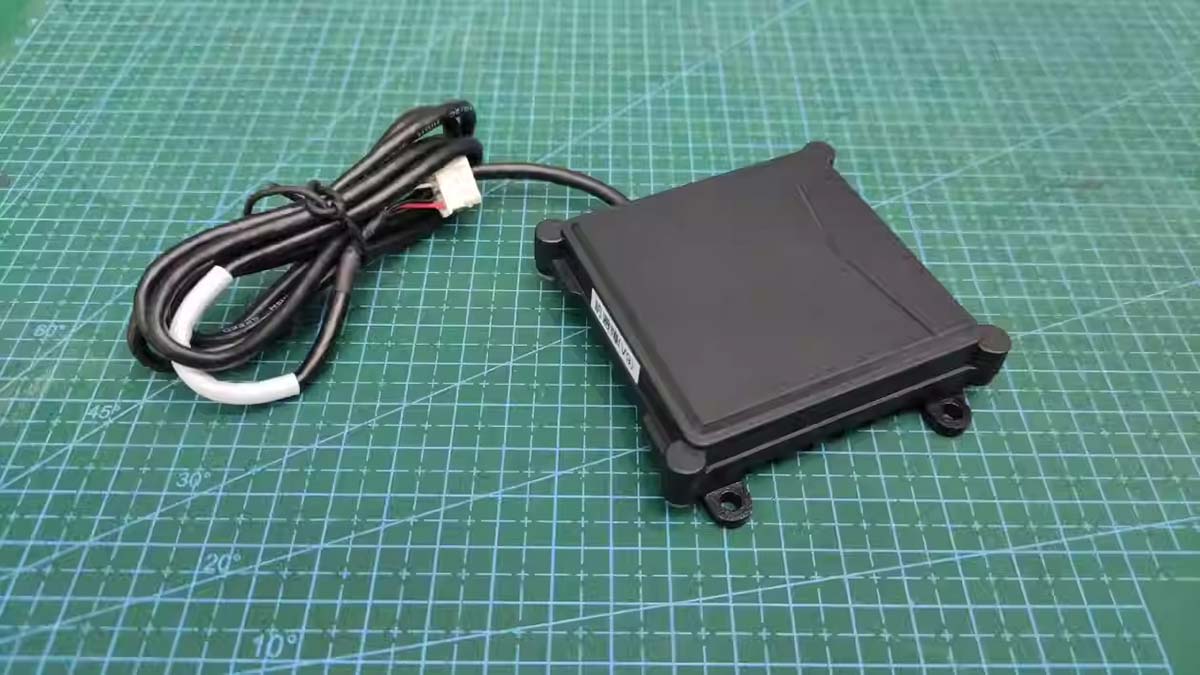

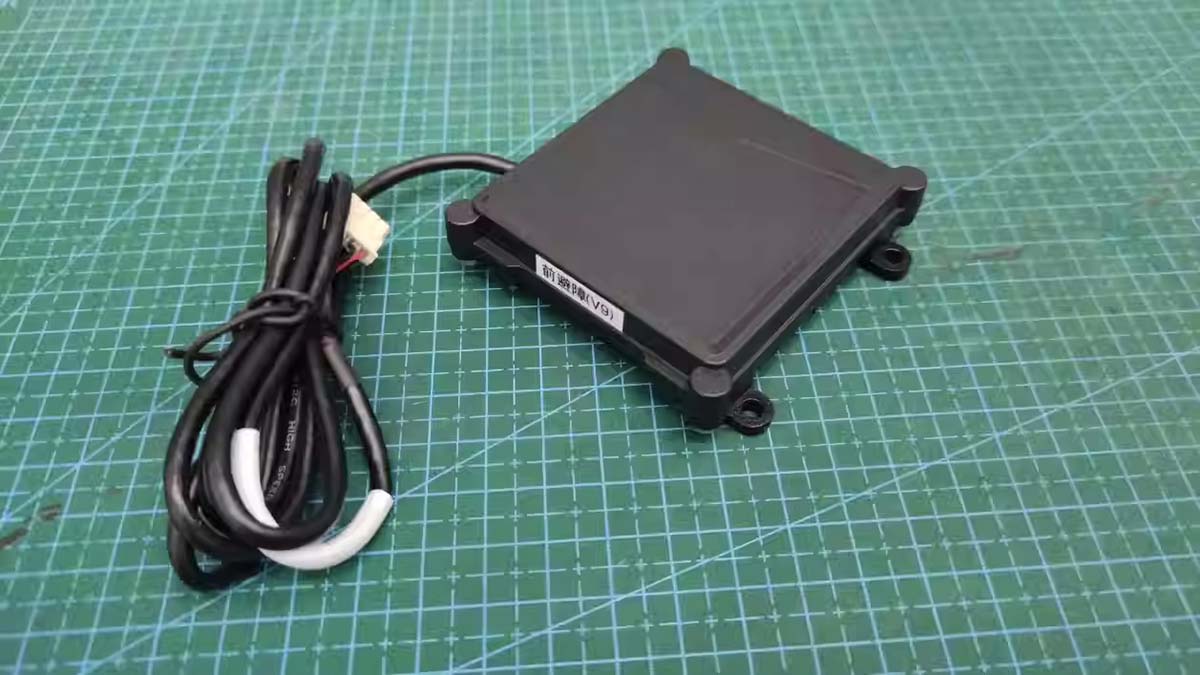

VK Front/Rear Obstacle Avoidance Radar
Stable target tracking: The detected target can be stably tracked at more than 20 meters, and the aircraft can be guided to achieve autonomous obstacle avoidance;
High detection accuracy: Compared with 24GHz radar, the radar ranging resolution is improved by 3 times, and the ability to identify obstacles is stronger;
Narrow radar beam: The energy is centered, reducing the interference of ground clutter when the drone is tilted, and solving the problem of flying at low altitude without hitting the grass;
Strong anti-interference ability: Not affected by light, weather, environmental noise, and electromagnetic interference from drones;
Smaller size: The 79GHz Quemi wave obstacle avoidance radar is smaller in size and has a wider range of applicability: customers can adjust the radar sensitivity according to the operating environment.
Follow us World Drone Market on YouTube to view more videos about the VK Front/Rear Obstacle Avoidance Radar.
| Performance technical indicators | ||
| Features | Parameters | Technical specifications |
| Antenna Performance | Horizontal beam width | 士15° |
| Vertical beam width | -7°~+1° | |
| Maximum EIRP | 30dBm | |
| Radar performance | Ranging range | 1.5~27 |
| Ranging accuracy | ±0.1 | |
| Distance resolution | 0.12 | |
| Radar attributes | Transmitting frequency | 79 |
| Refresh rate | 20Hz | |
| FM bandwidth | 1.4 | |
| System Properties | Operating voltage | 5-24V |
| Operating temperature | -40°C~75°C | |
| Power consumption | <3w | |
| Waterproof level | IP67 | |
| Data interface | CAN | |
| PCB size (length*width*height) | 55*52*1.6 |
Radar installation instructions
- Wire harness facing right
- The obstacle avoidance radar installation angle is in the range of 0°~12°, and the recommended installation angle is 12° to achieve the best obstacle avoidance effect.
