The Cube Orange+

1 Review Write a review
Product codeHX4-06214
Availability Out of stock

$214.90

Included:

  •  The Cube Orange+ (Beta Version) * 1

Note: No cables or carrier board included. This Cube Orange + Drone Flight Controller version does not support PX4 firmware.

The Cube Orange+ Flight Controller

The Cube Orange+ autopilot target to education, drones lovers and professional cost-effective flight control hardware providers. The new generation of more powerful H7 processor, stronger performance, faster, more secure, built-in triple redundant sensor, temperature control shock absorption IMU. With the help of flight software, Cube Orange Plus (IMU V8) a solution suitable for countless unmanned systems including multi-rotor drones, airplanes, helicopters, VTOL airplanes, boats, cars, submarines, etc. This is an improved version of Cube Black (Pixhawk 2.1). This product is made in Taiwan.

Note: No cables and carrier board included. With Carrier Board, click on the link: The Cube Orange Standard Set(ADS-B Carrier Board)

Follow us World Drone Market on YouTube to view more videos about Cube Orange+ Flight Controller.

The Hex Cube Orange+ (IMU V8) Features

  1. Faster H757 SOC with 1 MB RAM.
  2. Upgrade the triple redundant IMU sensor to add additional redundancy.
  3. The two groups of IMUS are mechanically isolated to reduce the influence of frame vibration on state estimation.
  4. IMUs are temperature-controlled by onboard heating resistors, allowing the optimum working temperature of IMUs.
  5. The entire flight management unit (FMU) and inertial management unit (IMU) are housed in a relatively small form factor (The cube).
  6. Fully CubePilot Carrier Board compatible with all inputs and outputs via an 80 pin DF17 connector, allowing for plug-in solutions from commercial system manufacturers.
  7. Manufacturers can design their own Carrier Board to meet specific needs now and in the future.

The Cube Orange Pixhawk (IMU V8) I/O ports

  • 14 PWM servo outputs (8 from IO, 6 from FMU).
  • R/C inputs for CPPM, Spektrum / DSM and S.Bus.
  • Analogue / PWM RSSI input.
  • S. Bus servo output.
  • 5 general purpose serial ports, 2 with full flow control.
  • Two I2C ports.
  • One SPI port (un-buffered, for short cables only not recommended for use).
  • Two CAN Bus interface. (CAN FD for BlueH7 and Orange with CubePilot Logo)
  • 3 Analogue inputs.
  • High-powered piezo buzzer driver. (On expansion board)
  • High-power RGB LED. (I2C driver compatible Connected externally only)
  • Safety switch / LED.

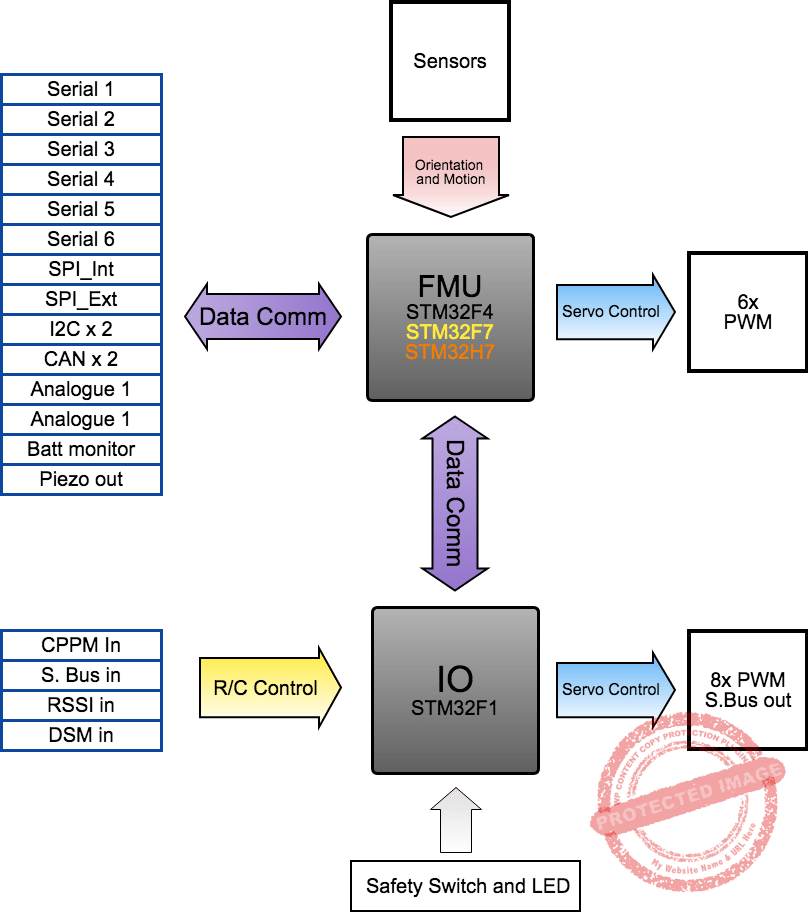

System Architecture

The Cube continues with the FMU + IO architecture from the previous generation, incorporating the two functional blocks in a single physical module.

Cube System architecture - The Cube Orange+

Visit World Drone Market to buy Here 3+ with iStand CAN GNSS for the Flight Controller.

Weight 0.045 kg
Dimensions 6 × 5 × 3 cm

1 review for The Cube Orange+

Quality

100 %

Price

100 %

Service

100 %

Reviewed by 0 customer(s)

Sort by

  • Anderson Easton

    Great, the best is strong stability and WDM offers the best price.

    2022-11-15
    Verified Purchase

    Share on

    Helpful?

Leave feedback about this

The Cube Orange+ (IMU V8)
  • Flash: 2 MB
  • RAM: 1 MB
  • On-board 16 KB SPI FRAM
  • ICM 20649 30G integrated accelerometer / gyro
  • MS5611 Barometer
  • Connected via SPI
  • Micro SD interfaces via SDIO
