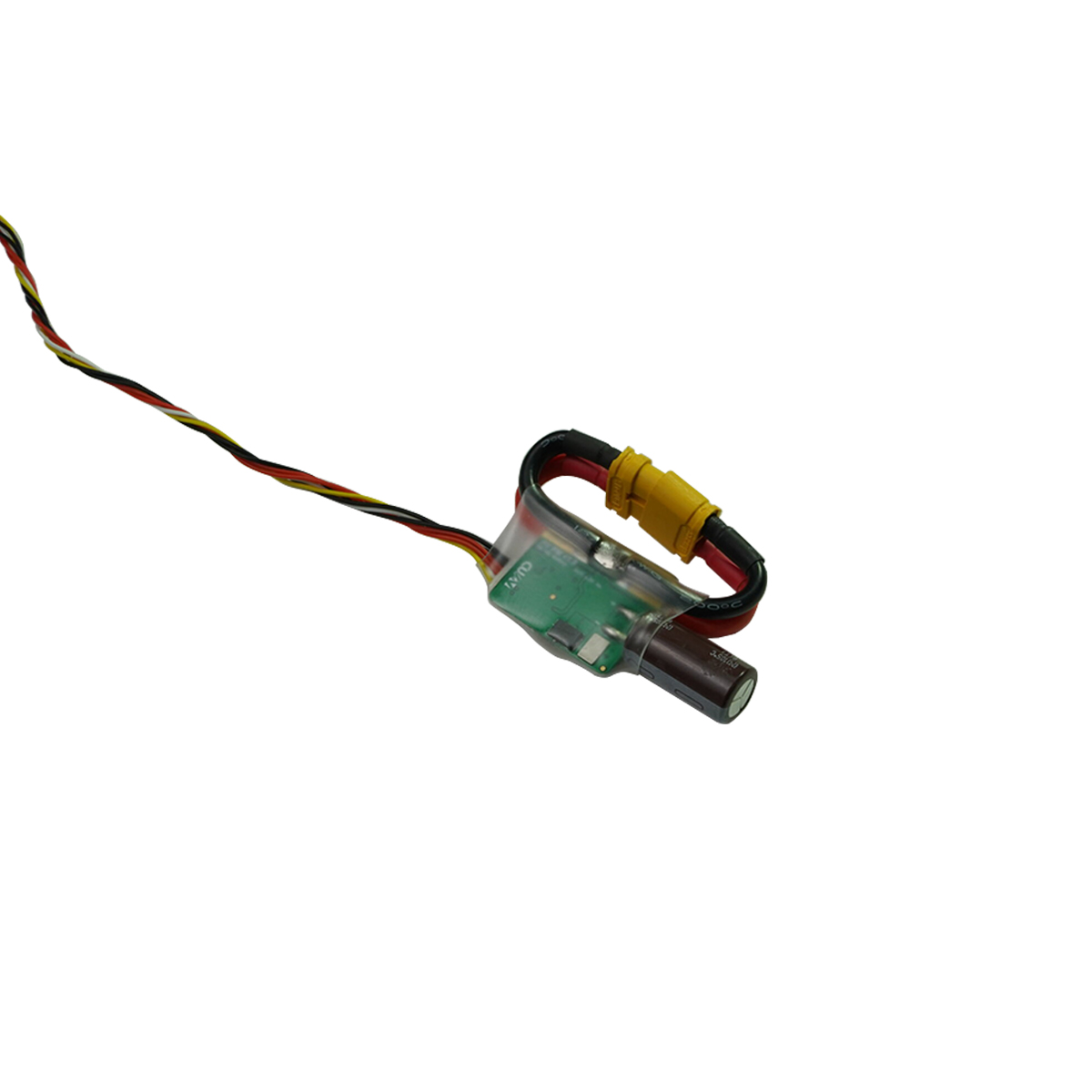

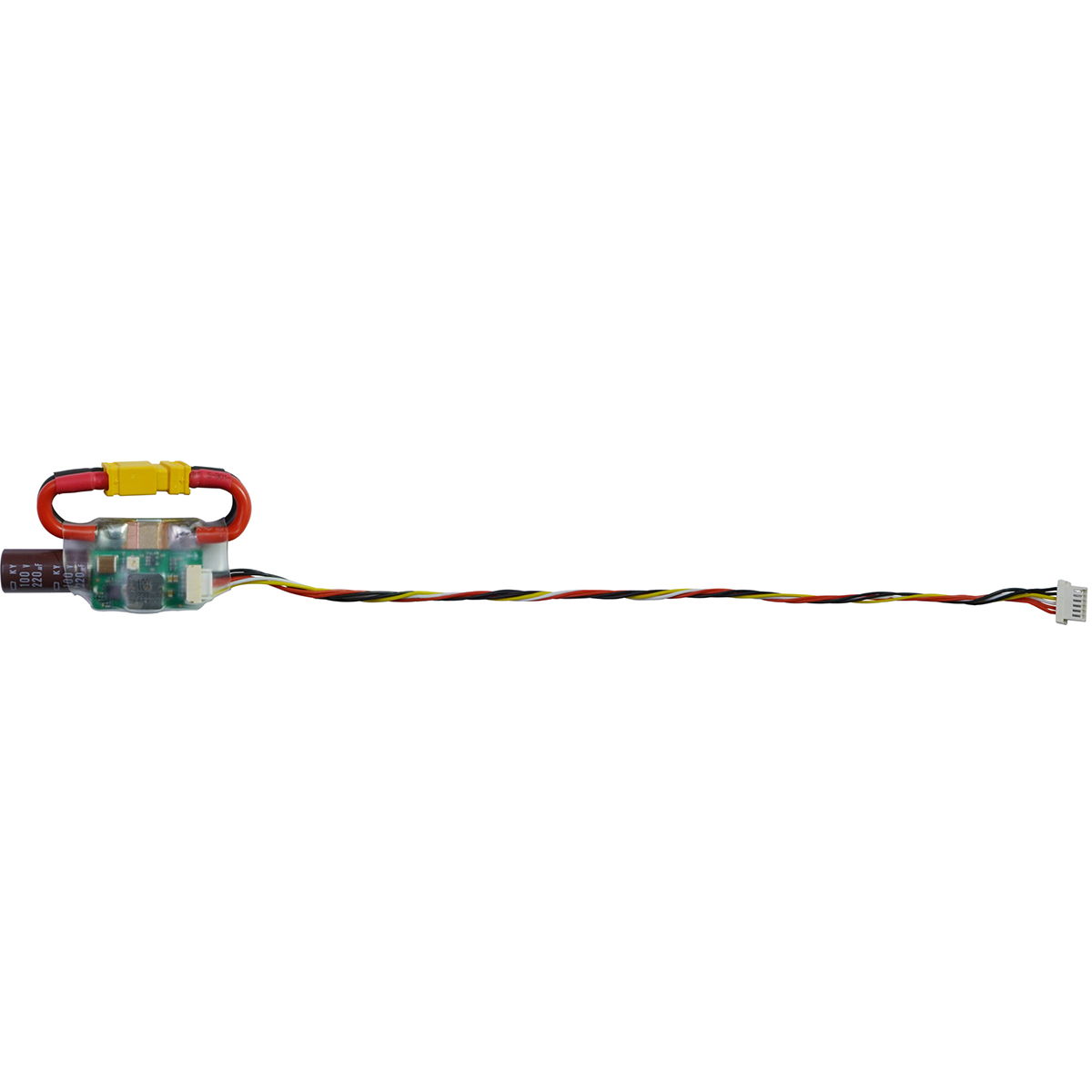

CUAV HV PM Power Module
Feature:
- Hold more high input voltage: 10v-60v (3s ~ 14s battery)
- More accurate current and voltage detection: Voltage detection accuracy: + – 0.1v; Current detection accuracy: + – 0.2aA
- Support higher power port output current: 5A
- Maximum (detection) current: 60A
Function:
- Provide 5V voltage output and maximum 5A current to fly control power supply
- Detection of the current-voltage output analog signal to the flight control
- Detection of the current system output analog signal to the flight control
- Because PIX flight control ADC maximum detection voltage of 3.3, so the maximum can only support 60A current detection.
- Its use is very simple, 6P signal line into the flight control POWER connector
Ground station settings:
Use a USB or digital connection to the ground station
Initial Setup >> Optional Hardware >> Battery Detector
Select monitor: 4; Sensor 0; APM version 4; Fill in divider ratio 18; fill amperes per volt: 24
Manual calibration voltage:
Because the PM module is an analog sensor device, there may be some differences
You can calibrate the parameters for better accuracy
Pre-calibration preparation:
1: Multimeter or BB ring (calibration voltage use)
Calibration voltage steps:
1: Use battery power, and connect to the ground station
2: Use the multimeter or BB to measure the current battery voltage
3: Select the sensor version 0, in the measured battery voltage input current measured voltage filled into the box, click the mouse or click the TAB button, the ground station will
automatically calculate a partial pressure ratio coefficient and automatically save the write Flight control
4: The calibration is complete, no current calibration is required.
