Holybro PM06 V2 Power Module

Product code15019
Availability In stock (can be backordered)

$20.99

Package Includes
  • 1x  PM06 Power Module
  • 1x  JST GHR 6pin 1.25mm pitch cable
Buy it now

Holybro PM06 V2 Power Module 14S Version

Description:

Holybro PM06 V2 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.

Follow us World Drone Market on YouTube to view more videos about the Holybro Product.

Specifications:

  • Input voltage (10S version): 2S-10S
  • Input voltage (14S version): 2S-14S
  • PCB Cont. Current Rating: 70A
  • PCB Burst Current Rating: 120A (<60 Sec)
  • Output: DC 5.2V & 3A Max
  • Ouput Max Power : 18W
  • Voltage Divider: 18.182
  • Amperes per Volt: 36.364

Please Note:

  • The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
  • This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Mechanical Specification:

  • Dimensions: 35x35x5mm
  • Mounting hole: 30.5mm*30.5mm
  • Weight: 24g

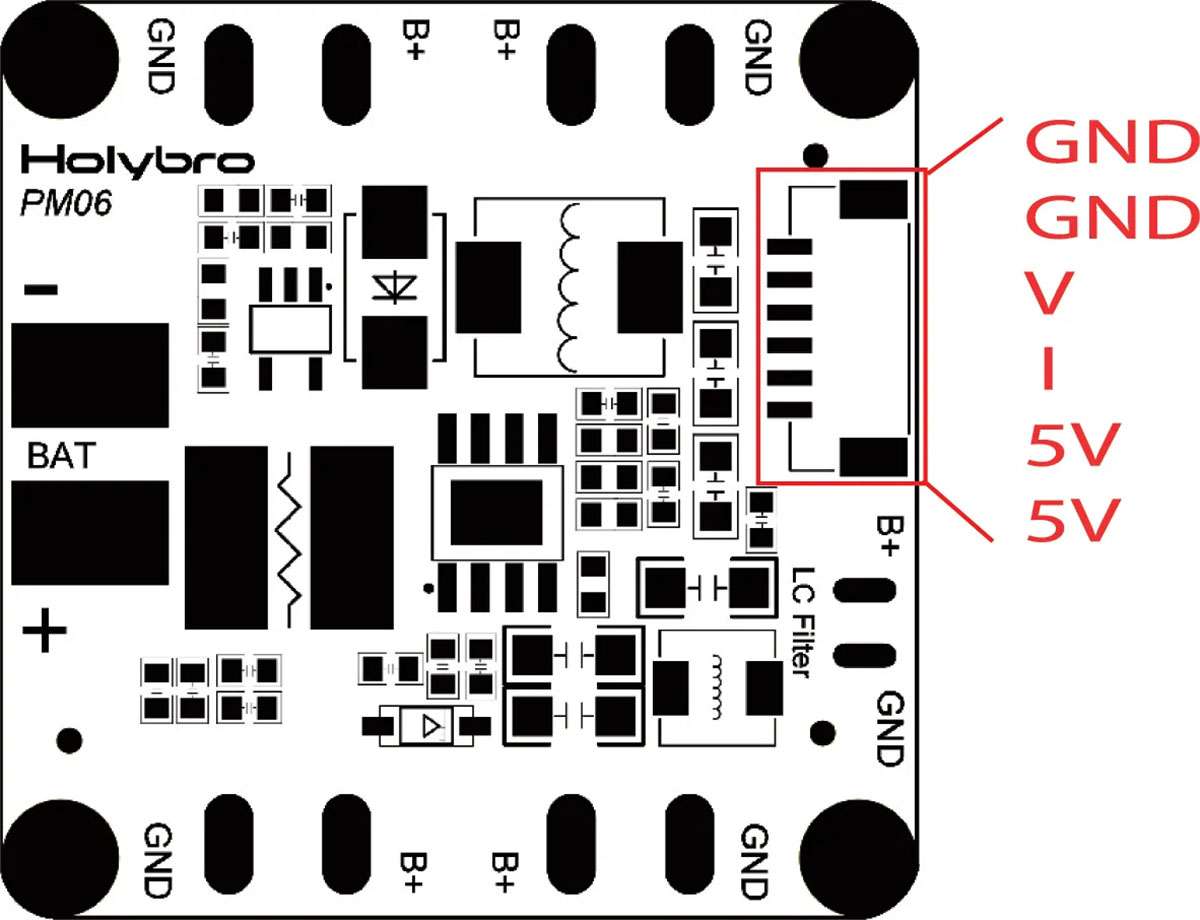

Pin Map:PM06 V2 Power Module 4 - Holybro PM06 V2 Power Module
