CUAV P9 Radio Telemetry Long Data Link Transmission Module

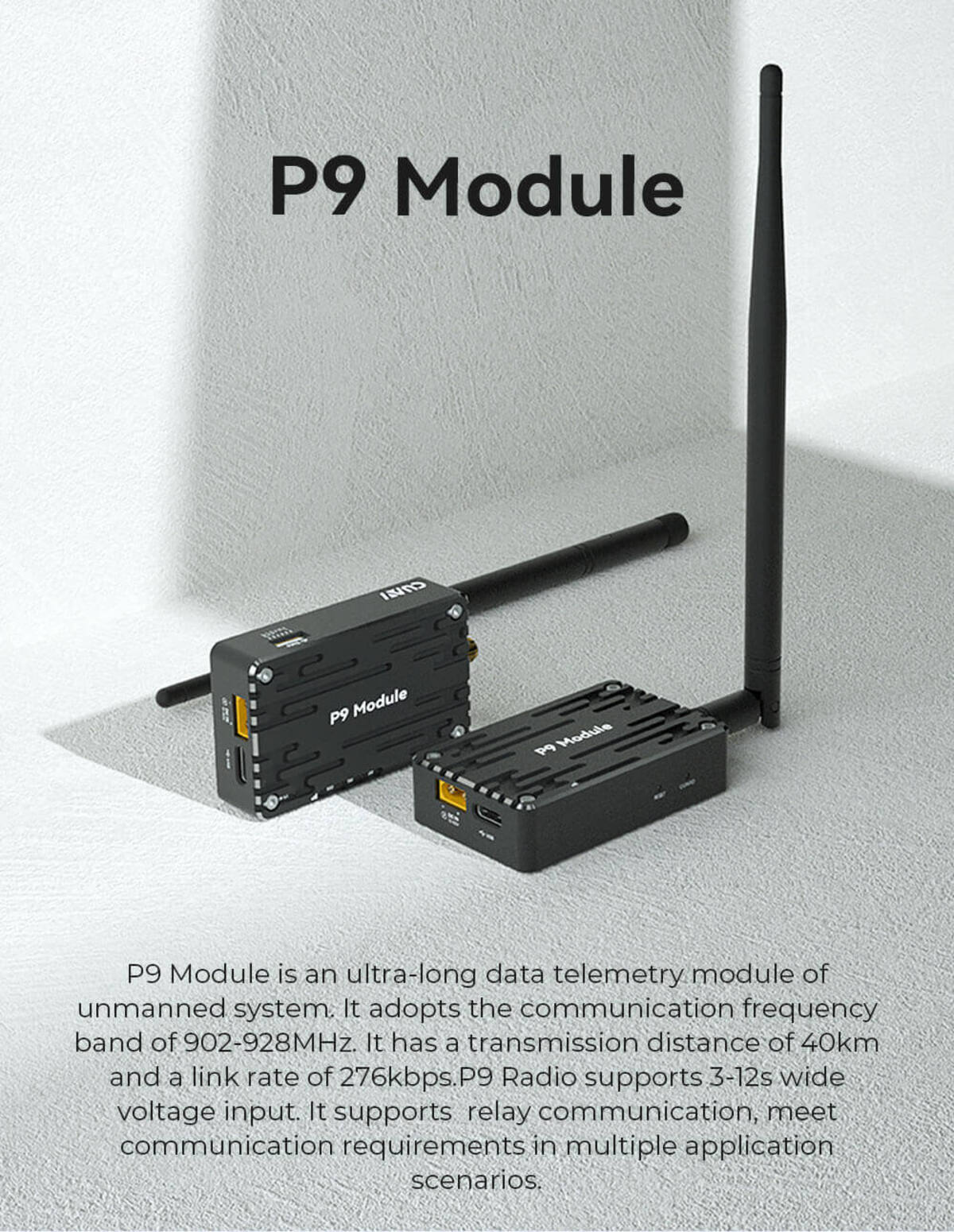

CUAV P9 Radio Telemetry Module is an ultra-long data telemetry module of unmanned system. It adopts the communication frequency band of 902-928MHz. It has a transmission distance of 40km and a link rate of 276kbps. P9 Radio supports 3-12s wide voltage input. It supports relay communication, meet communication requirements in multiple application scenarios.
Follow us World Drone Market on our YouTube to view more about the CUAV P9 Radio Telemetry Module.
CUAV P9 Module Telemetry Feature:
- 902-928 MHz communication band
- 276 Kbps transmission rate
- 40 km range
- Support 3 S ~ 12 S battery input
- Dual-end switchover design
CUAV P9 Module Telemetry Specification:
Main Parameter |
|
| Working frequency | 902–928MHz |
| Spreading Method | Frequency Hopping |
| Transport protocols | transparent transmission |
| Forward Error Correction | Hamming, BCH, Golay, Reed‑Solomon, Viterbi |
| Encryption | 32 bits of CRC、ARQ |
| Range | Reference distance: 40km (The transmission distance is different under different environments/configurations; please refer to actual use) |
| Sensitivity | -110dBm@115.2kbps -108dBm@172.8kbps -107dBm@230.4kbps |
| Transit power | Hopping: 100mw~1000mw(20~30dBm) Default: 1000mW |
| Antenna gain | 5DBi |
| Serial type | 3.3V CMOS TTL |
| Link Rate | Up to 276kbps |
| Baud Rate | Max 230.4kbps; 57600(default) |
| Operating Modes | Auto Routing, Store and Forward, Self Healing, Packet Routing Modes |
| Input voltage | 12V–60V |
| Power consumption | Sleep<1mA, Idle<3.5mA, RX:35~80mA, TX(Peak) :<2A |
| Interface | Antenna: SMA inner needle; Serial GHR‑06V‑S; USB: TYPE‑C; Power: XT30PW‑M |
| Operation Temperature | -40℃~85℃ |
| Humidity | 5% to 95% noncondensing |
| Weight | P9 module: 55g; antenna 31g; total 86g |
| Size | 65mm×40mm×16.5mm |
CUAV P9 Module Telemetry Description:

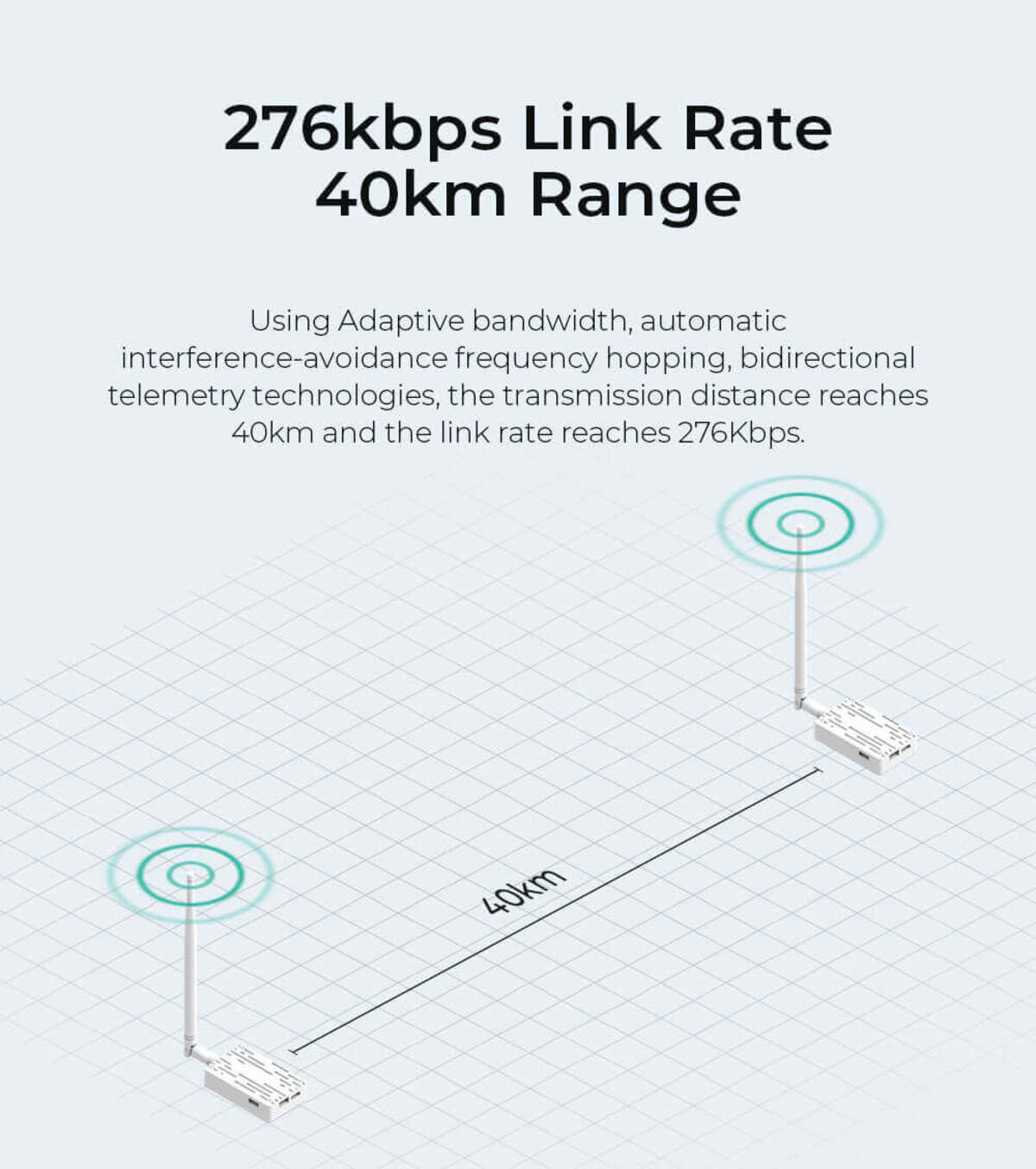

276kbps Link Rate 40km Range
Using Adaptive bandwidth, automatic interference-avoidance frequency hopping, and bidirectional telemetry technologies, the transmission distance reaches 40km, and the link rate reaches 276Kbps.

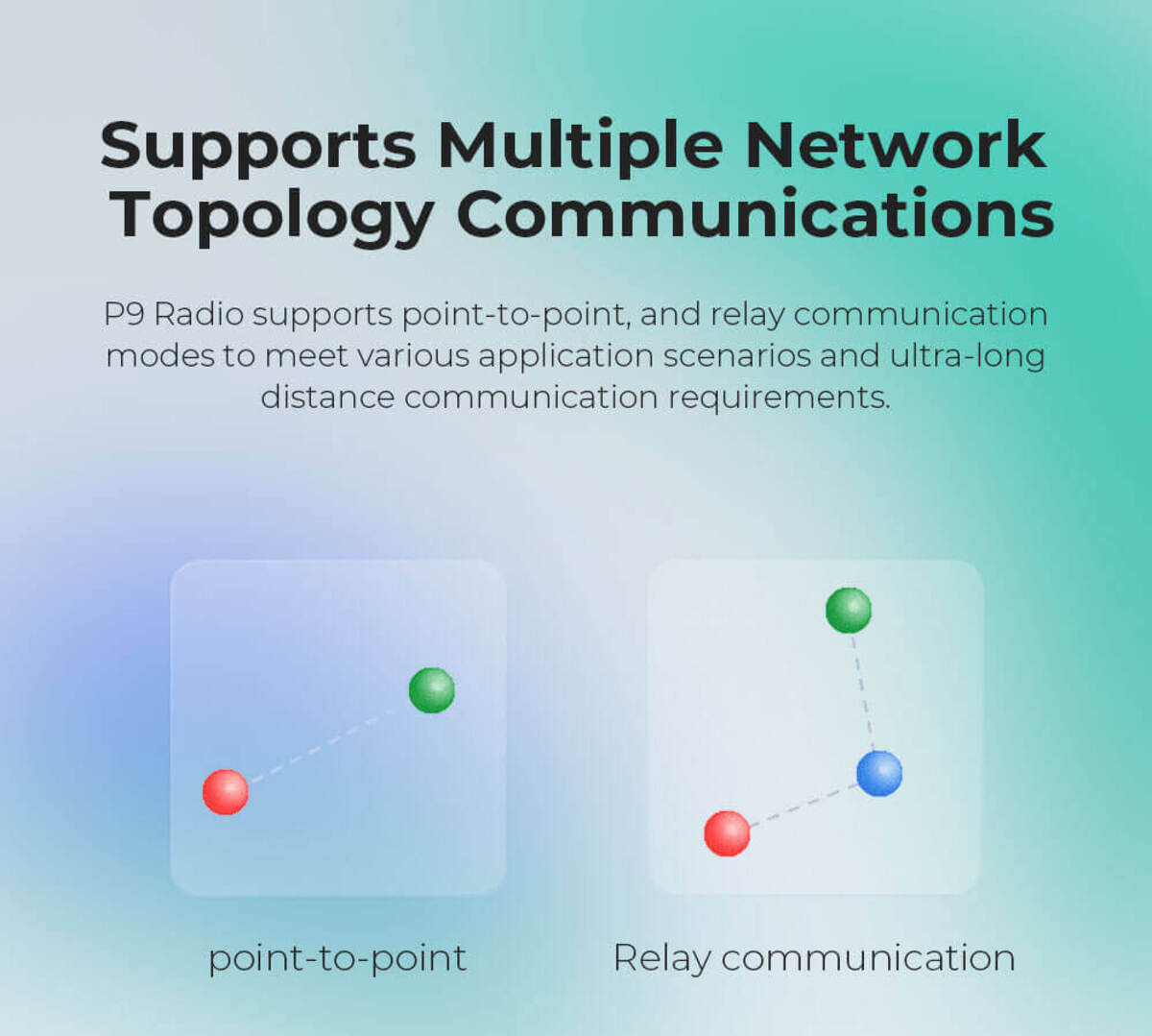

Supports Multiple Network Topology Communications
P9 Radio supports point-to-point and relay communication modes to meet various application scenarios and ultra-long distance communication requirements.

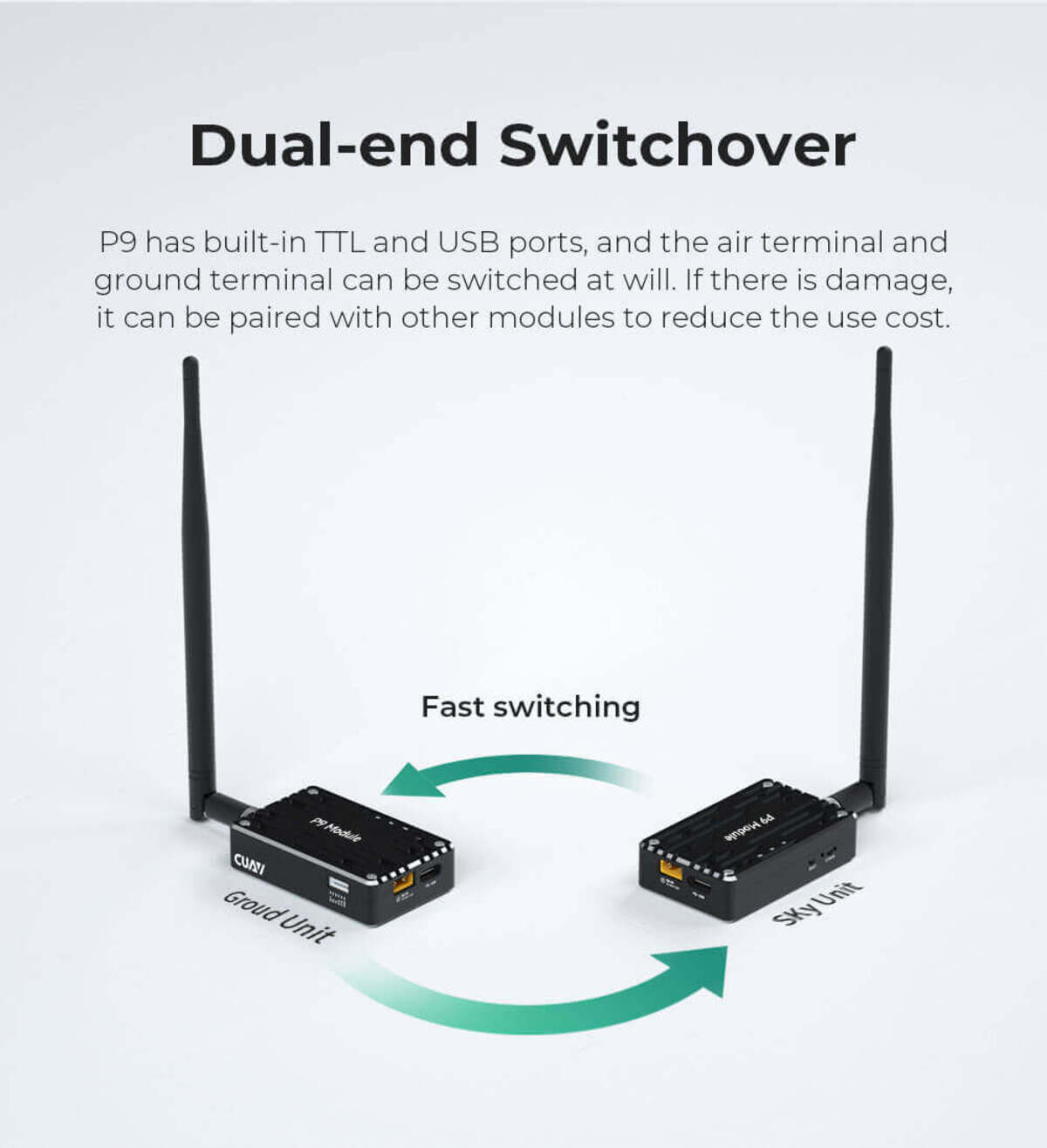

Dual-end Switchover
P9 has built-in TTL and USB ports, and the air terminal and ground terminal can be switched at will. If there is damage, it can be paired with other modules to reduce the use cost.

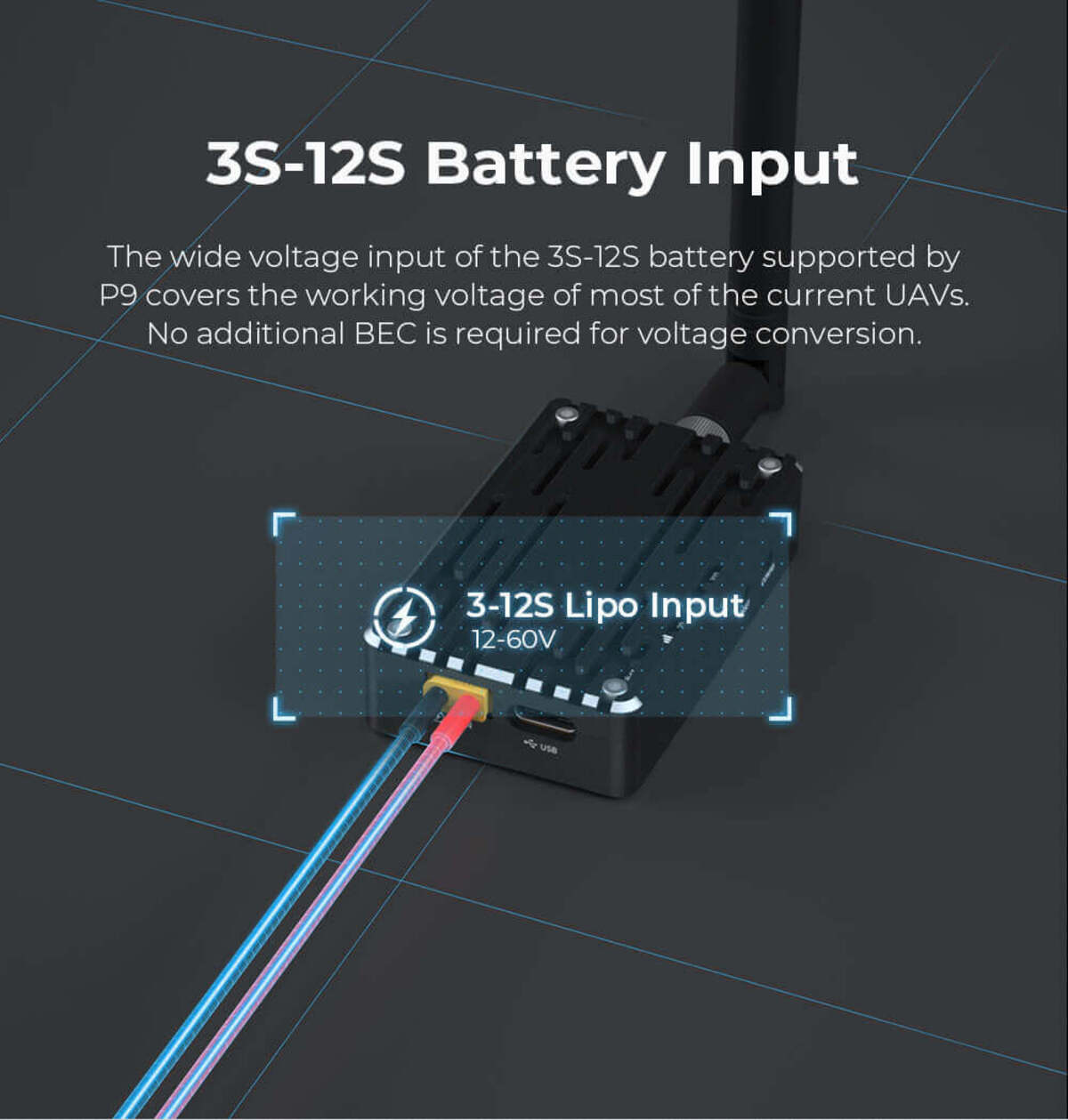

3S-12S Battery Input
The wide voltage input of the 3S-12S battery supported by P9 covers the working voltage of most of the current for unmanned systems. No additional BEC is required for voltage conversion.

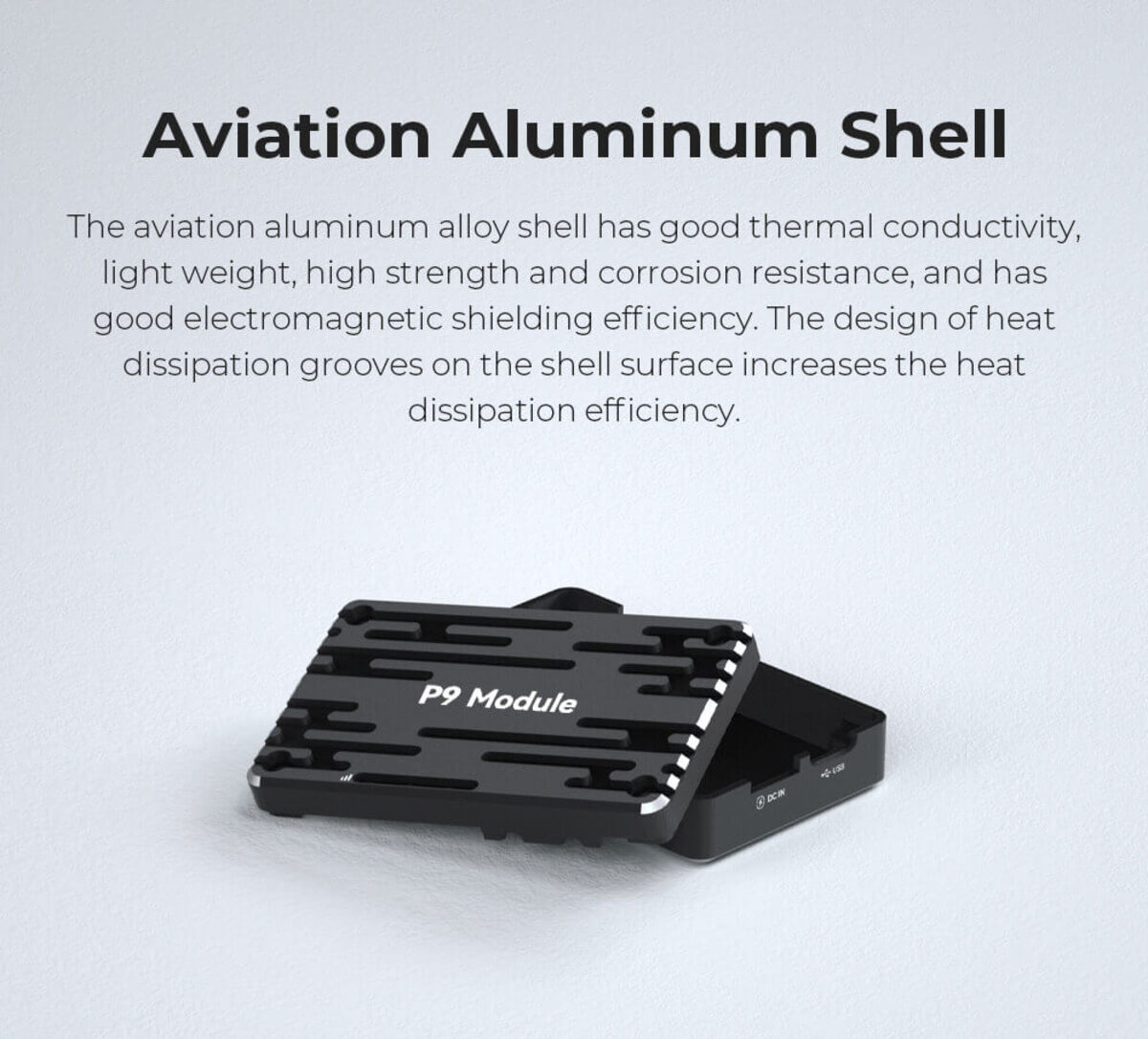

Aviation Aluminum Shell
The aviation aluminum alloy shell has good thermal conductivity, light weight, high strength, corrosion resistance, and good electromagnetic shielding efficiency. The design of heat dissipation grooves on the shell surface increases the heat dissipation efficiency.
CUAV Telemetry Comparison |
|||
| Item | P8 Module | P9 Module | XB Pro Module |
| Working frequency | 840‑845MHz | 902‑928MHz | 902‑928MHz |
| Range | 40KM | 40KM | 10KM |
| Transit Power | 1000mW | 1000mW | 250mW |
| AirSpeed | 345kbps | 276 kbps | 200kbps |
| Network Topology | Point‑to‑Point, Relay Mode | Point‑to‑Point, Relay Mode | Point‑to‑Point, Relay Mode |
| Input voltage | 12V‑60V | 5.0V±0.25V | 4‑7V |
| Antenna Interface | SMA inner hole | SMA inner hole | SMA inner hole |
| Data Interface | GH1.25‑6P+Type‑C | GH1.25‑6P&Micro USB | GH1.25‑6P&Micro USB |
| Weight | 55/86g(Antenna include) | 42g/71g(Antenna include) | 37g/68g(Antenna include) |
| Size | 64.6mm×39.7mm×18mm | 51.5mm×38.5mm×16mm | 47mm×37mm×18mm |

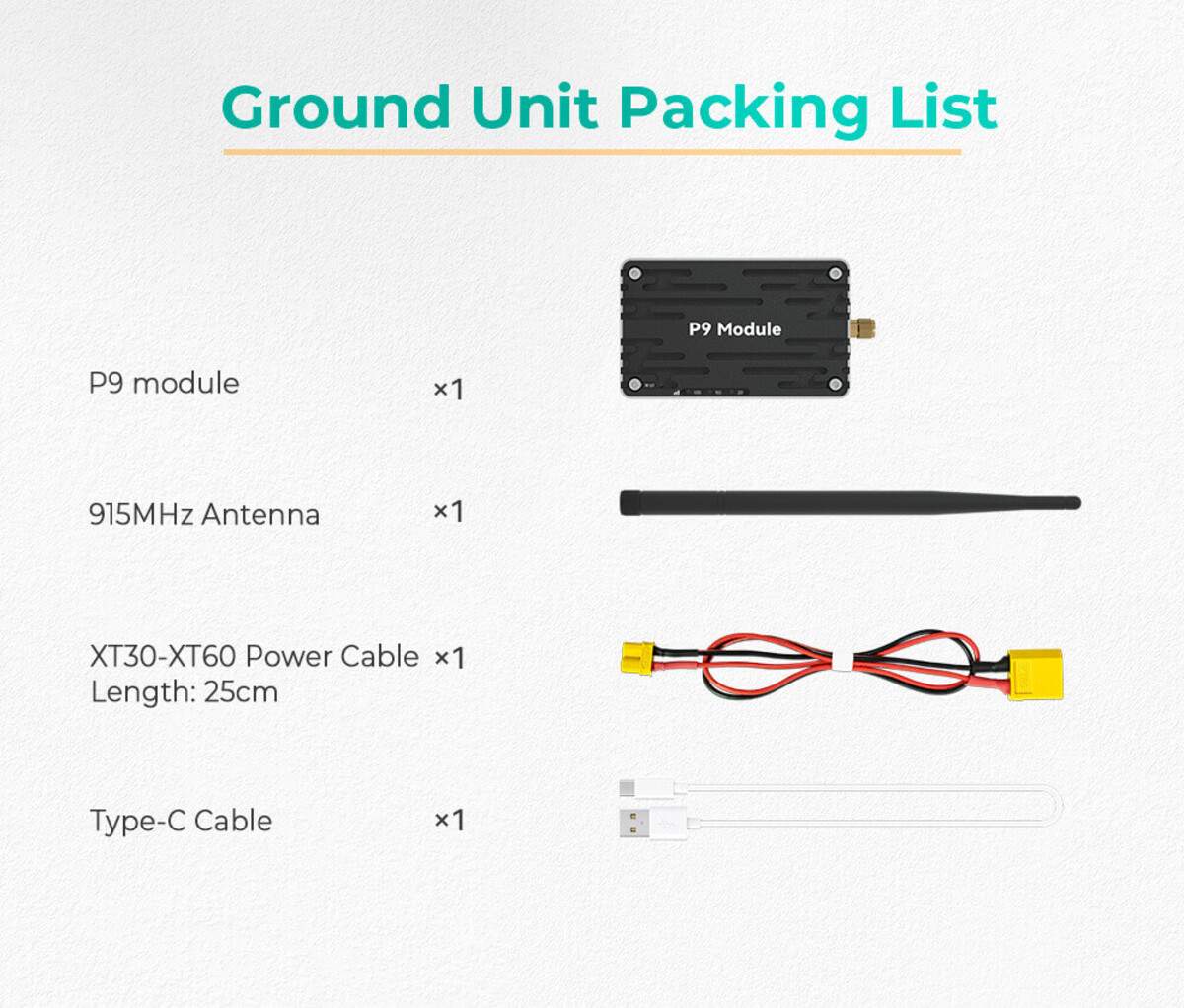

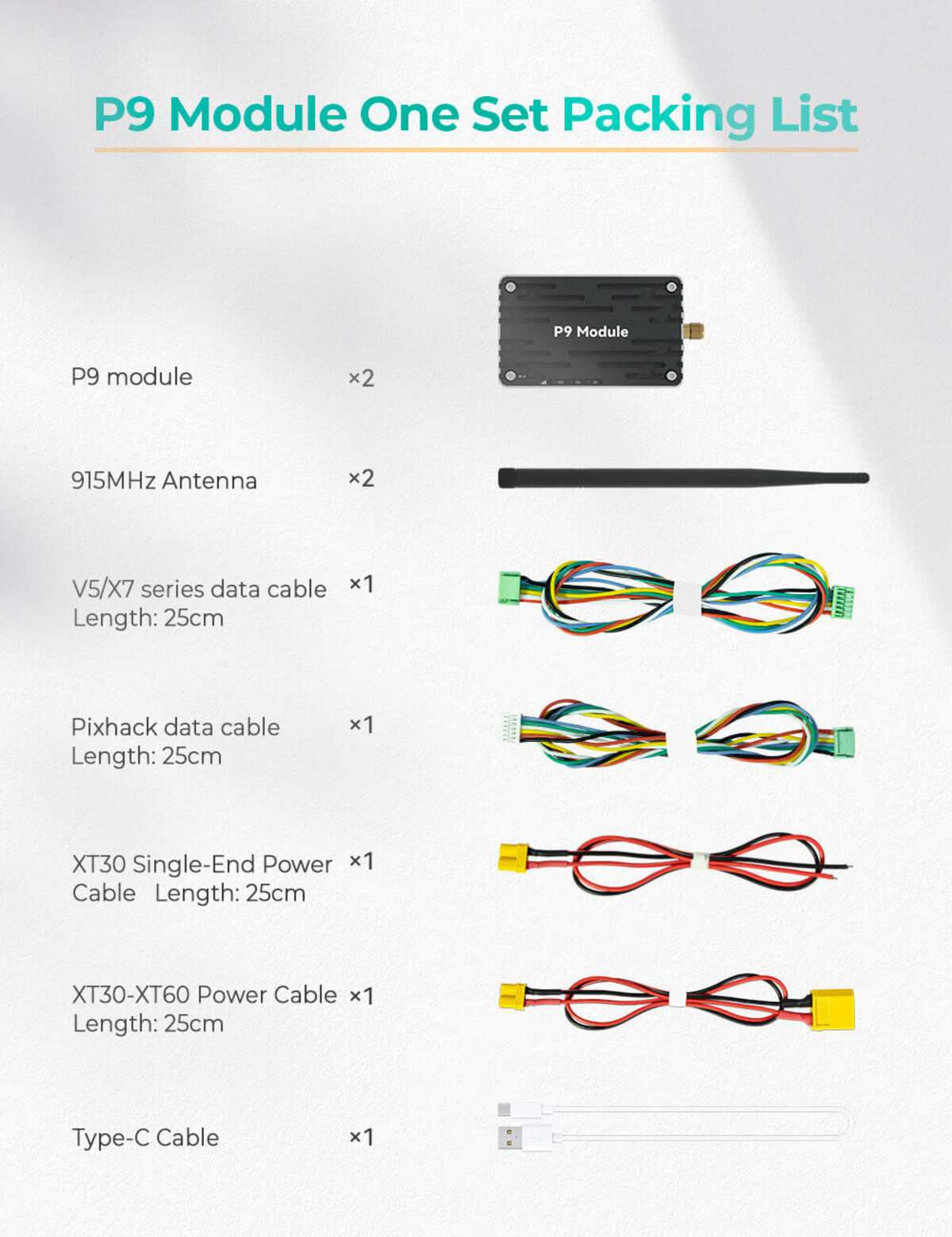

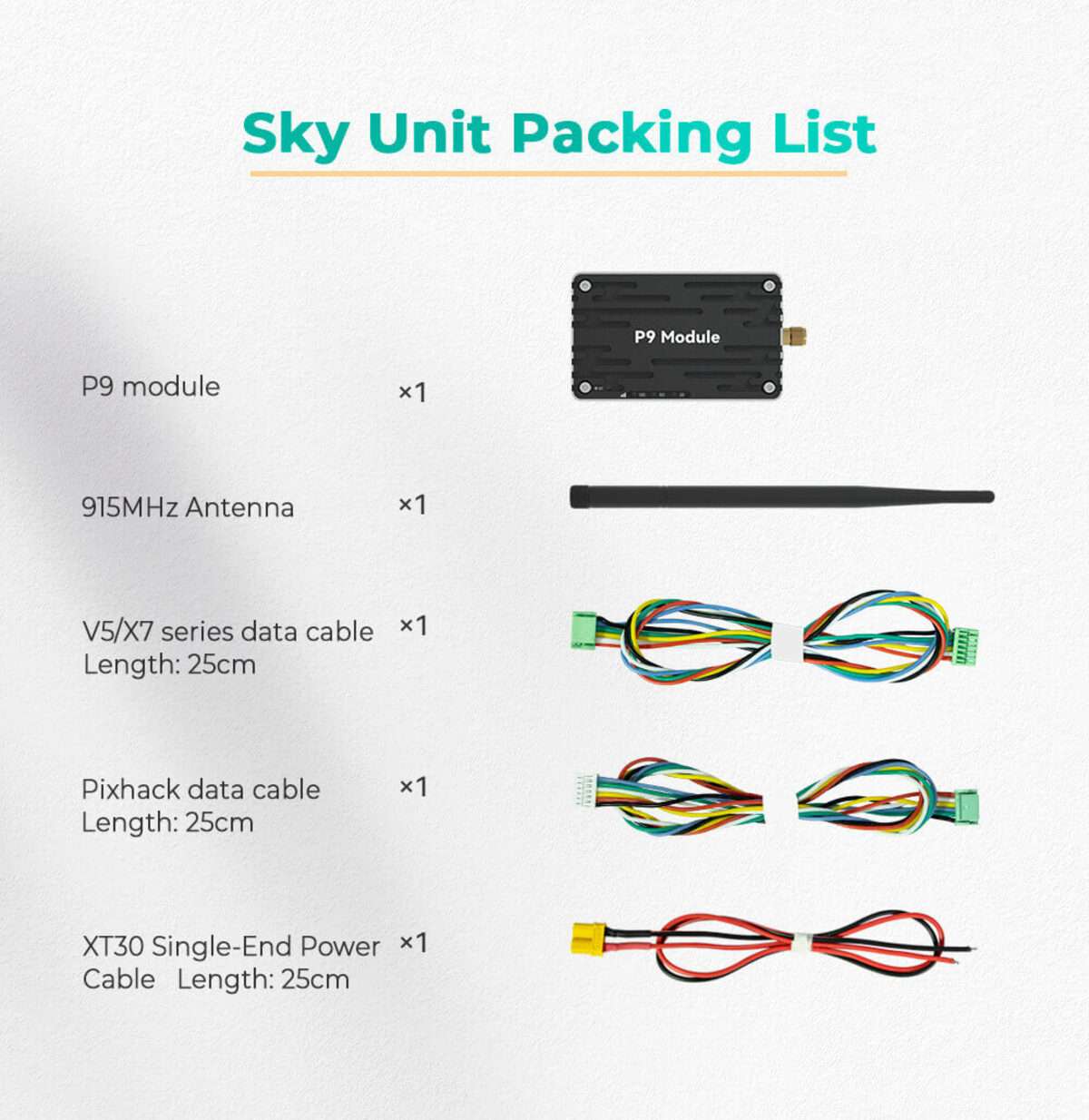

CUAV P9 Module Telemetry Packing List:
